Drilling Equipment | Augers
RC4
Combo Augers

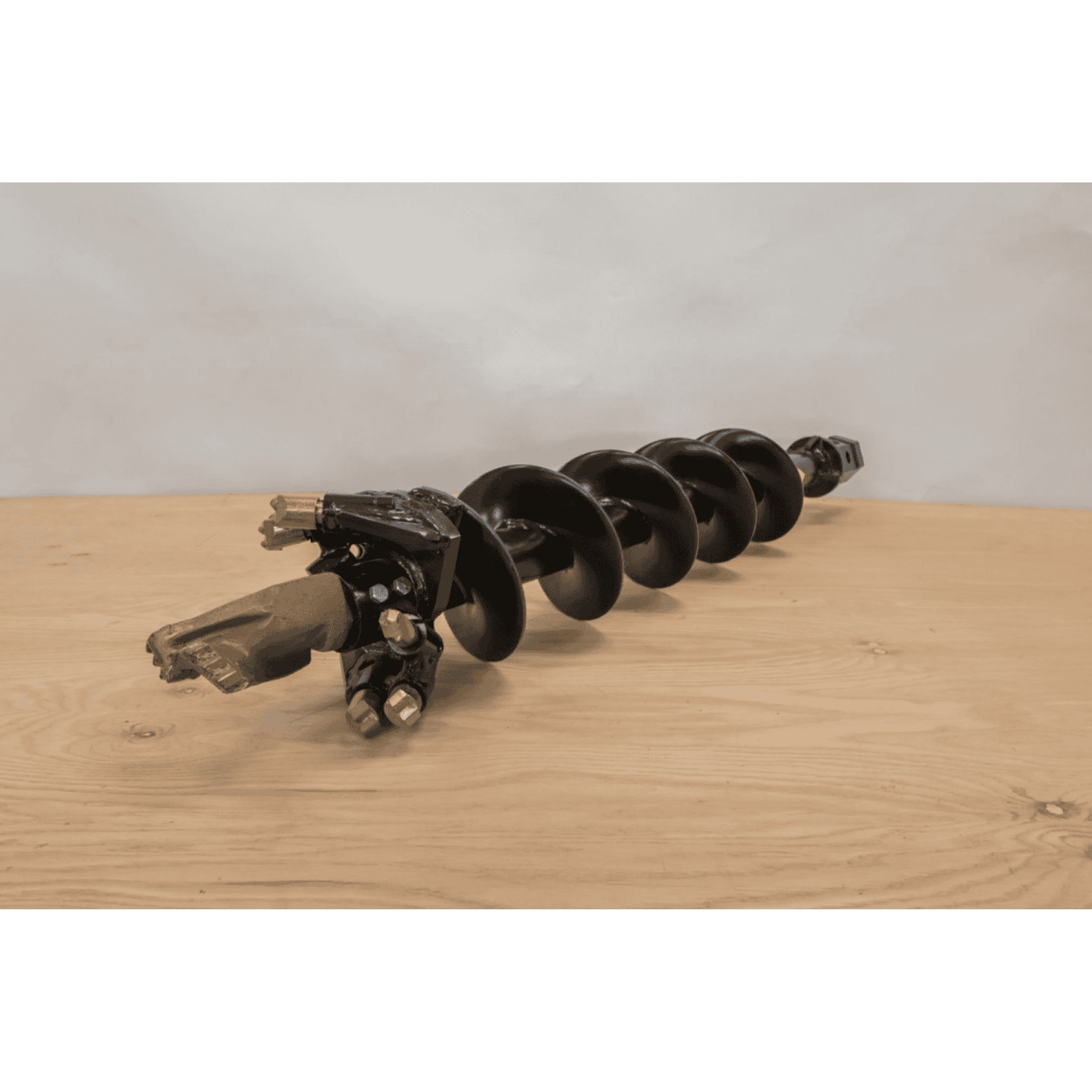

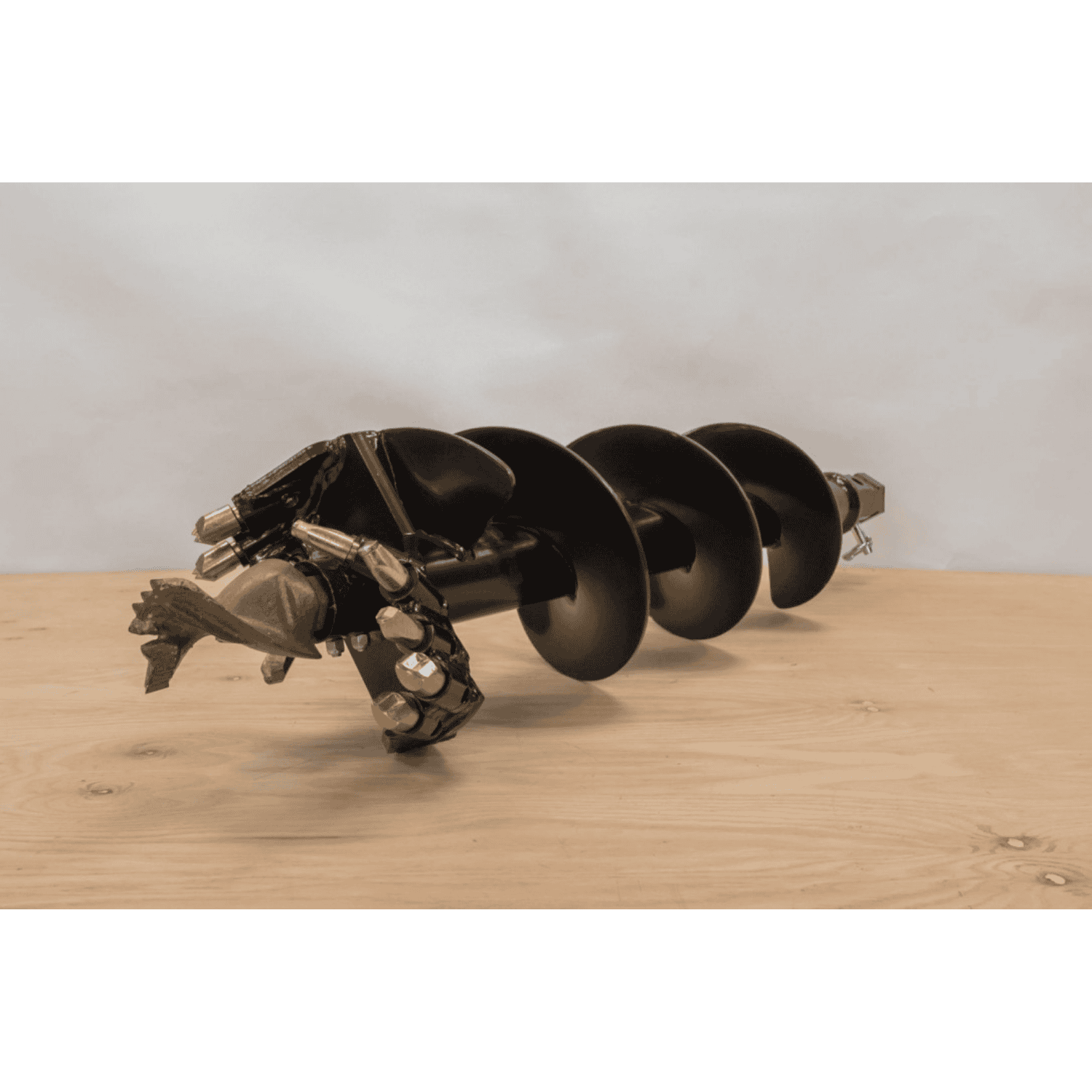

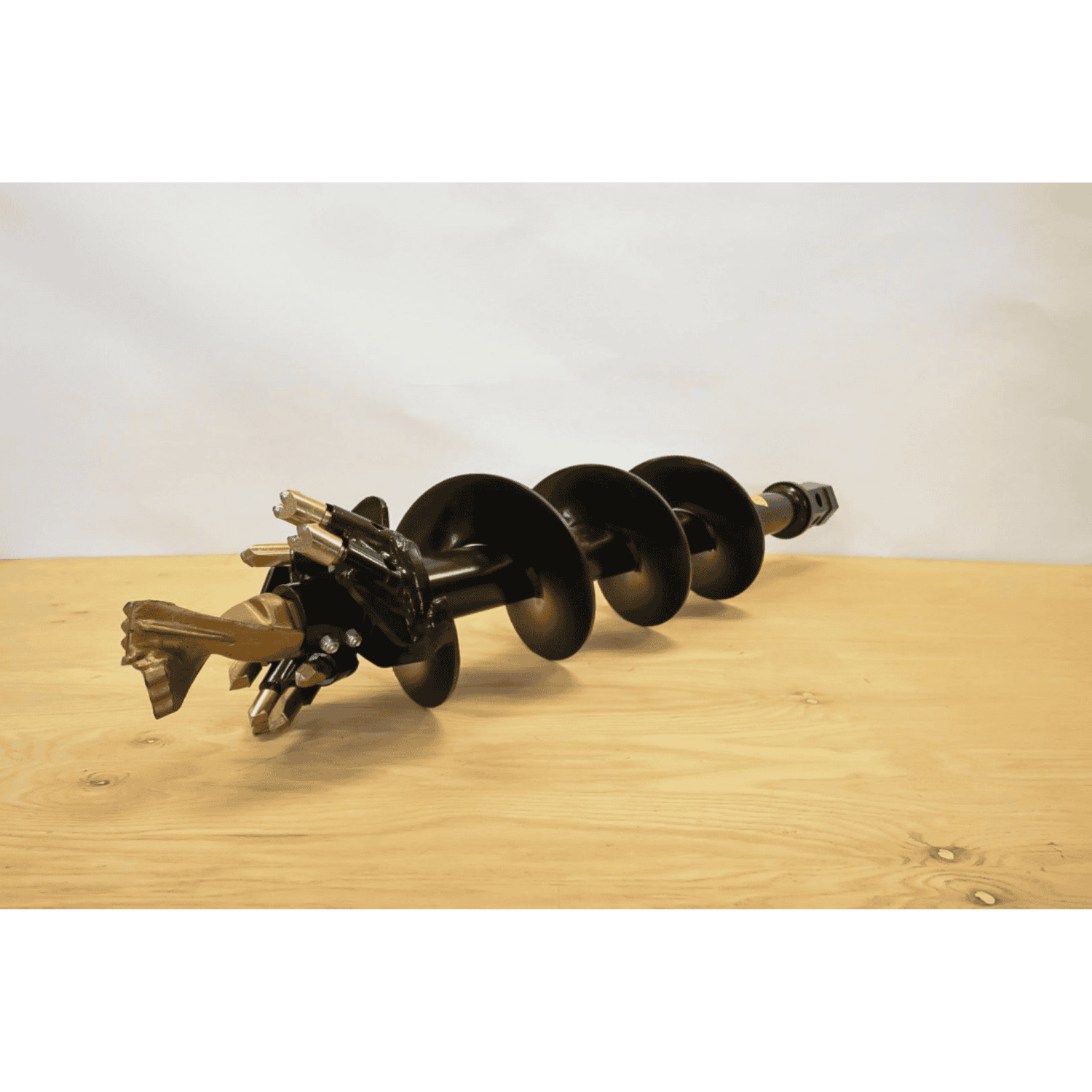

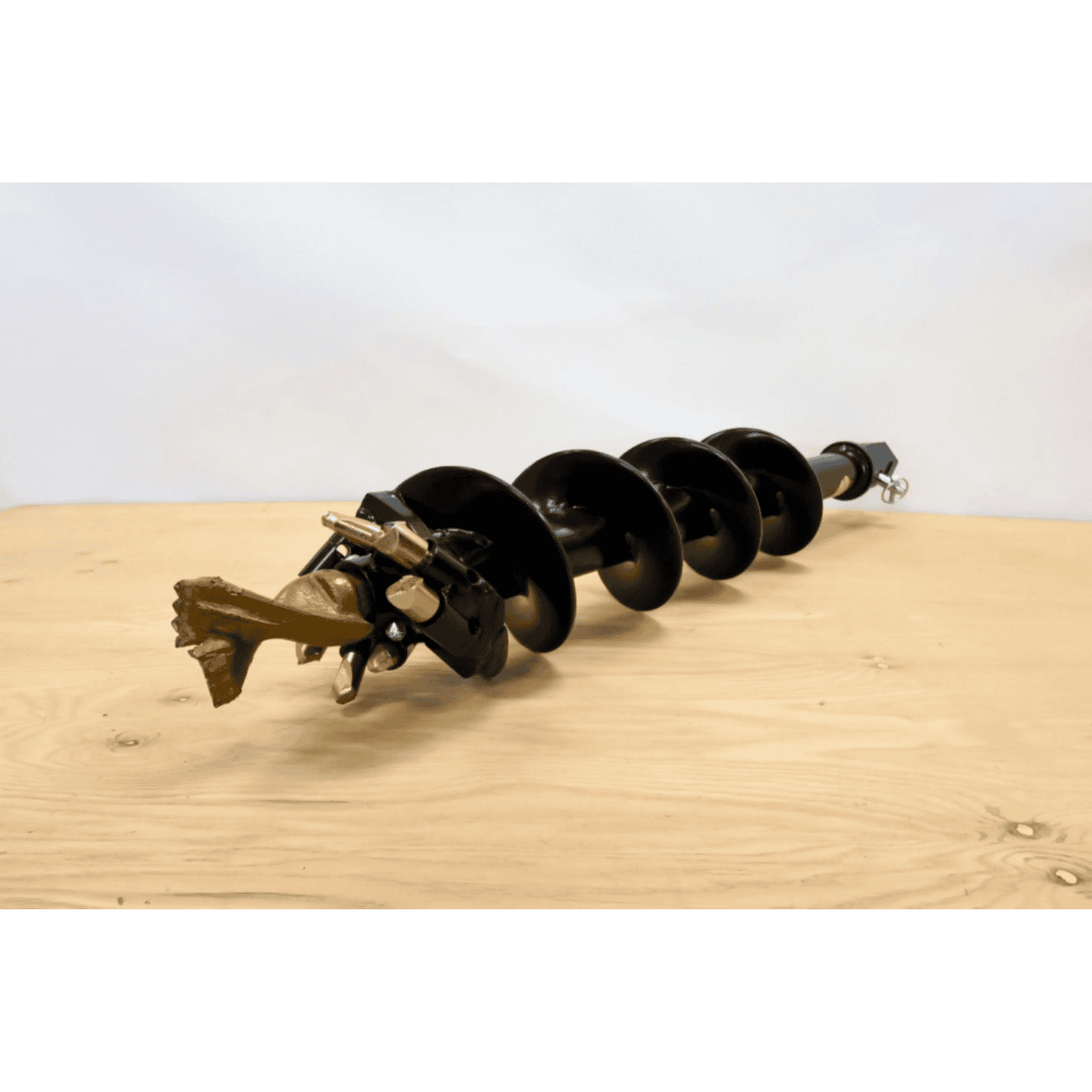

RC4 Combination Earth & Rock Auger Bits
RC4 auger bits are available with a range of different teeth options to suit most ground conditions including earth, hard soils, shale, clay, and permafrost.

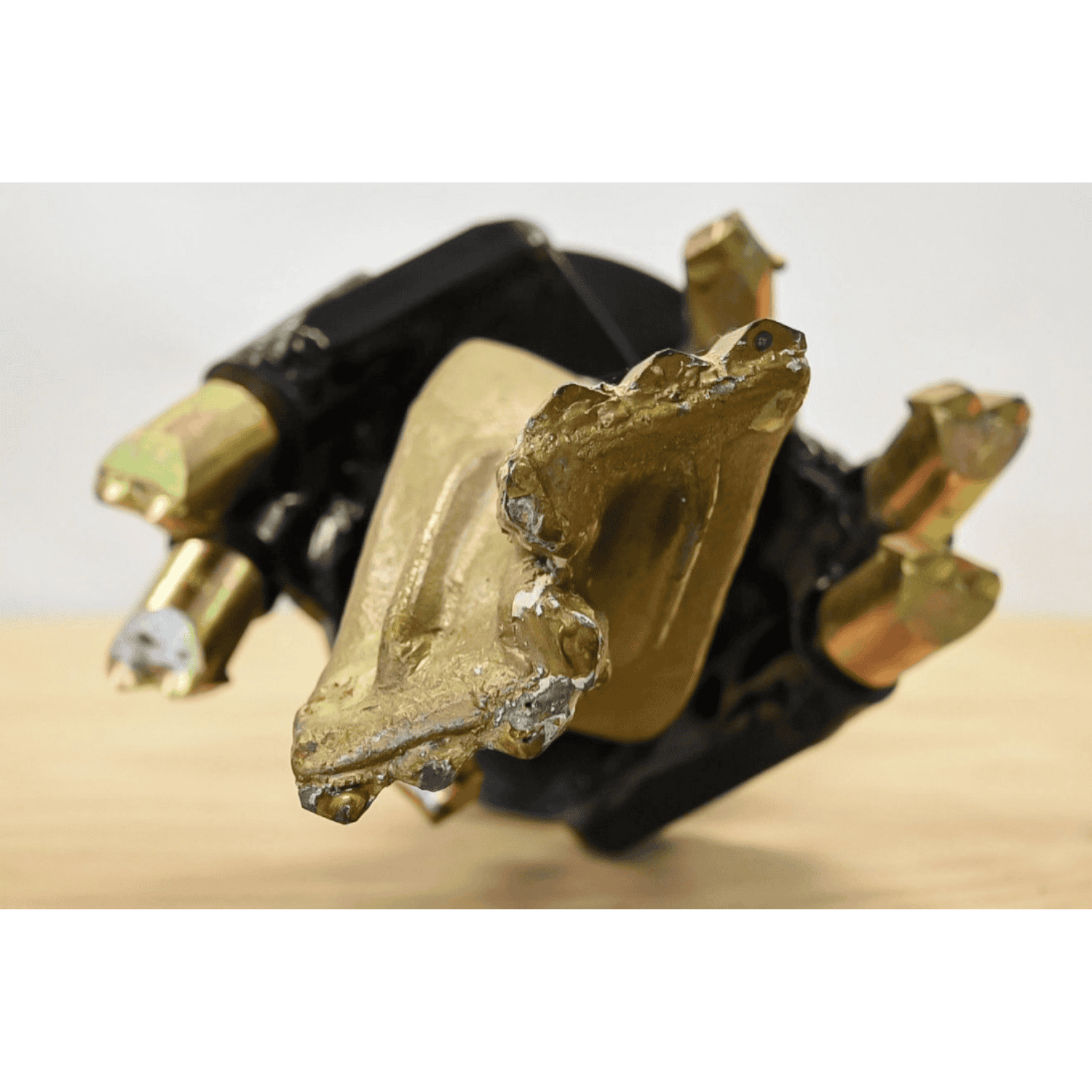

With the RC4, you get the superior penetrating ability of the B7 taper tooth head, all purpose tapered teeth to form the perfect combination for drilling in all conditions - from earth to medium rock, providing a clean hole every time.
RC4 teeth are easy to install and remove with Digga's ingenious knock in, knock out tooth locking system which eliminates the need to use extra tools to remove the teeth.
product features
Diameter Sizes
6" - 36"
Overall Length
48"
Hub
2" Hex
2.5" Round
Wear Parts
TTD-3/TTS-3 Teeth
PM-HX-3 Pilot
Flighting
Double Cut
Single Flight
5/16" Thick
Ideal Drives
1MDS - 4DSS
product specifications
RC 4 Combo Auger Specs
| PART NUMBER | DIAMETER | # of Inner Teeth | # of Outer Teeth | Availability |
|---|---|---|---|---|
| A06RC4Combo | 6" | 2 | 4 | Stocked Item |
| A08RC4COMBO | 8" | 2 | 4 | Stocked Item |
| A10RC4COMBO | 10" | 3 | 4 | Stocked Item |
| A12RC4COMBO | 12" | 5 | 4 | Stocked Item |
| A14RC4COMBO | 14" | 7 | 4 | Non Stocked |
| A16RC4COMBO | 16" | 7 | 4 | Non Stocked |
| A18RC4COMBO | 18" | 9 | 4 | Non Stocked |
| A20RC4COMBO | 20" | 9 | 4 | Non Stocked |
| A24RC4COMBO | 24" | 11 | 4 | Non Stocked |
| A30RC4COMBO | 30" | 11 | 4 | Non Stocked |
| A36RC4COMBO | 36" | 11 | 4 | Non Stocked |
