Anchoring Equipment | Drives
Anchor Drives
FOR
Mid Sized Excavators
Mid Size Excavator Anchor Drives
Digga’s anchor drives are built tough for serious piling jobs, with these drives delivering between 8,000 to 10,500 ft-lbs of actual torque. These drives are made to match your machine’s power range, helping reduce wear, improve performance, and give you the best value.
They come with a powerful and efficient hydraulic motor that includes a pressure relief valve for smooth operation and an Energy Control Valve (ECV) which helps protect the system from sudden pressure changes caused by pile kickback.
Built for strength and durability, the drives also feature a heavy-duty shaft system, strong frame, and no case drain is needed.
These drives come with the optional Halo Alignment System, and a 3-year gearbox warranty and a 2-year motor warranty.

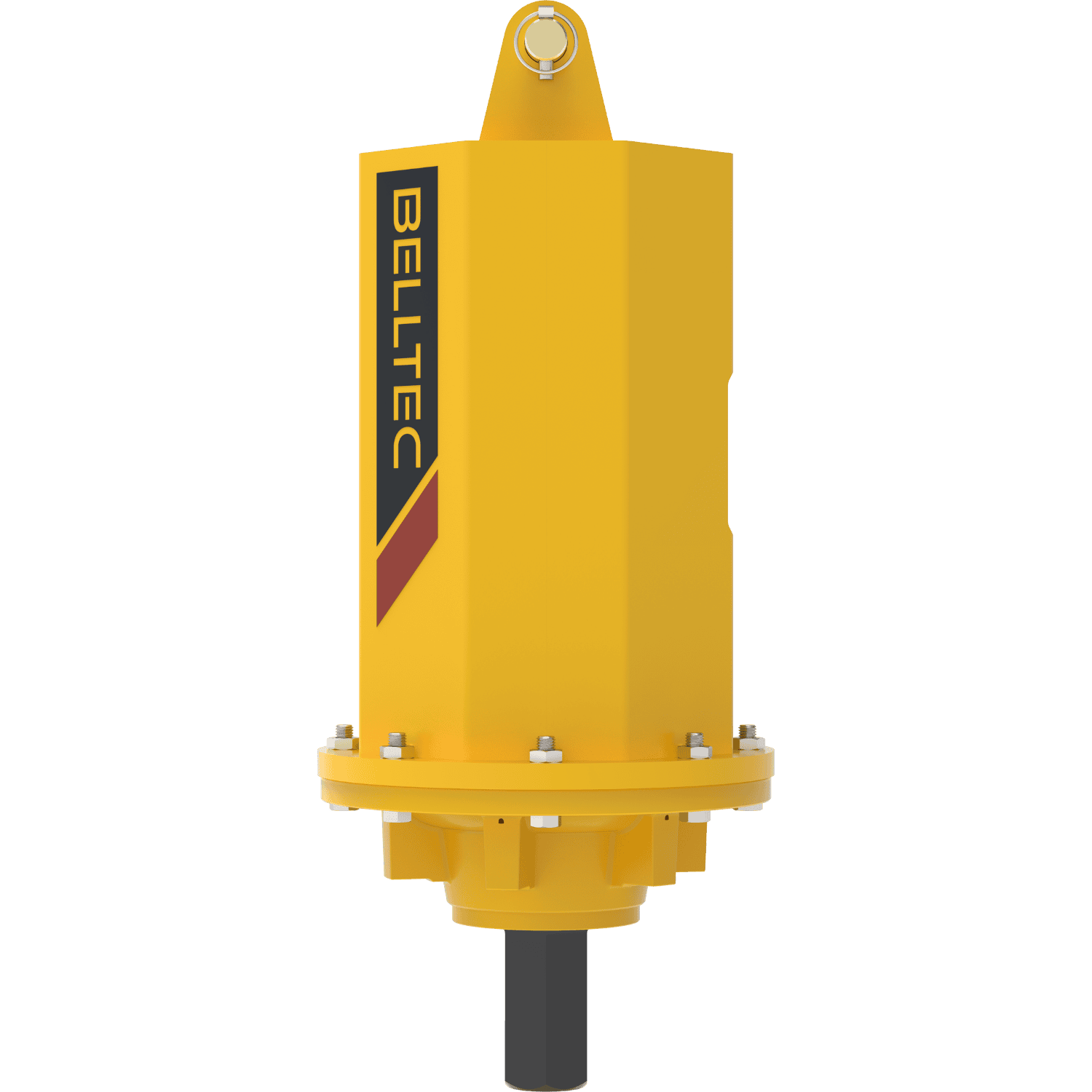

The Belltec HTLS10K drive is their most efficient drive and made for tough conditions. It also does not require any case drain.
Please contact us today at Triple M Services to discuss which anchor drive is the best for you.
product features
Halo System
Optional on DIGGA drives
Hub
2.5" / 3" Hex
Max Torque
8,000 - 14,500 ft/lbs
Ideal Drives
DIGGA 12ALS / 16ALS
Belltec HTLS10K
product specifications
Anchor Drive Specs
| Model | MAX TORQUE | Speed | Pressure Relief Valve | Case Drain | Output Shaft |
|---|---|---|---|---|---|

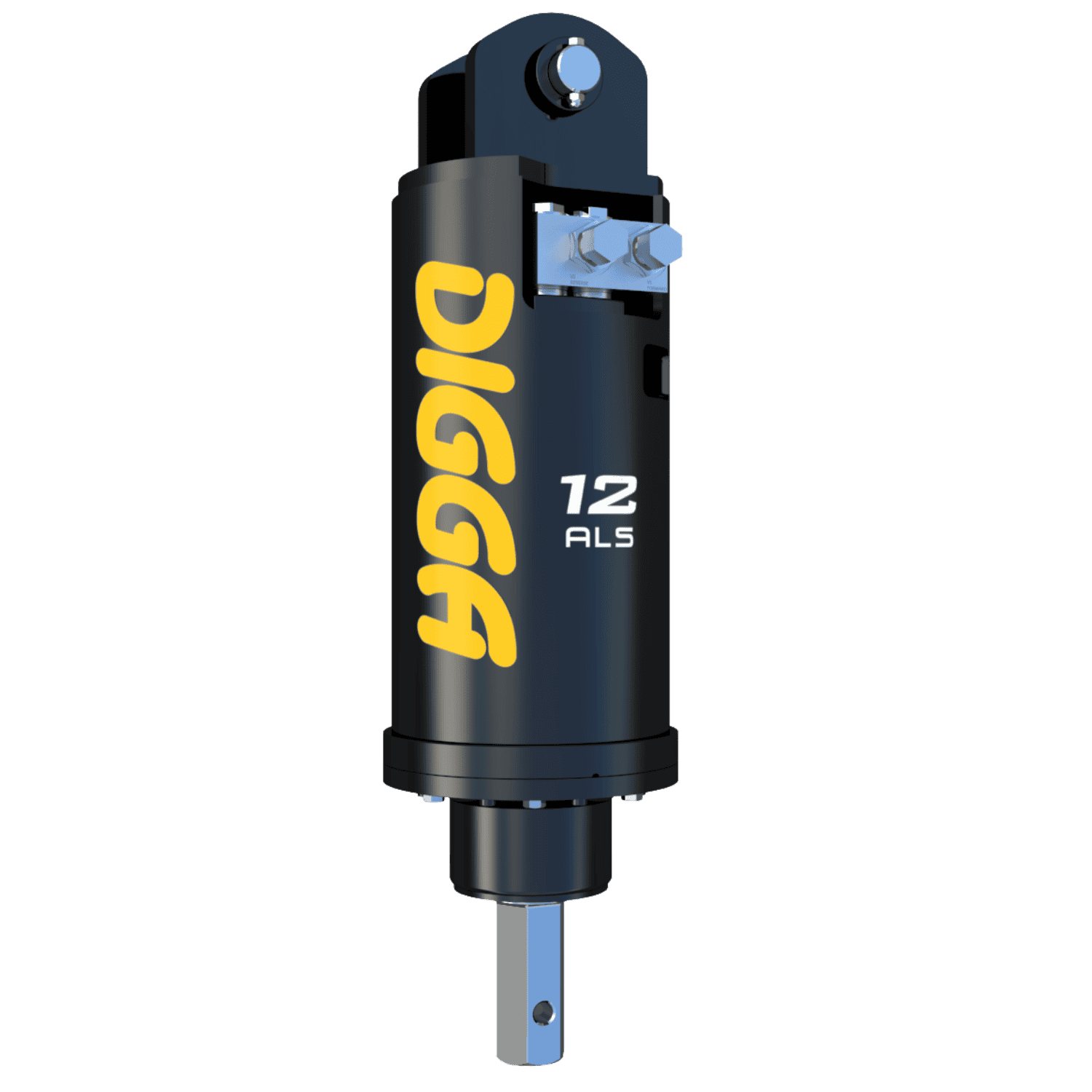

| DIGGA 12ALS | 12,445 FT/LBS | SINGLE SPEED | Included | NOT REQUIRED | 2.5" HEX |
| DIGGA 16ALS | 17,334 FT/LBS | SINGLE SPEED | Included | NOT REQUIRED | 3" HEX |
| BELLTEC HTLS10K | 12,216 FT/LBS | SINGLE SPEED | N/A | NOT REQUIRED | 2.5" HEX |
how the halo align system works
Watch a short video to see the Halo system in action.
Still have some questions?
That’s why we are here. Call Triple M today!
