Anchoring Equipment | Drives
Anchor Drives
FOR
Full Size Skid Steers
Full Size Skid Steer Anchor Drives
Digga’s Anchor Drives are heavy-duty, high-performance tools designed specifically for screw anchor and helical pile installations. Designed in-house to deliver maximum efficiency, reduced wear, and higher productivity.
Available in torque ranges from 12,000 to 25,000 ft-lbs, to suit your full sized skid steer. These anchor drives feature high-efficiency hydraulic motors with built-in pressure relief valves.
Available in two pressure options (3000 or 3500 PSI—to suit various machine capabilities. Every unit is backed by an up to 3-year gearbox and 2-year motor warranty when equipped with an ECV.
The Belltec HTLS-10K Hydraulic Auger Drive is a high-performance, heavy-duty drilling solution built for the toughest conditions. Delivering torque from 6,000 to 12,000 ft-lbs.
This efficient planetary drive is compatible with skid steers, tractors, backhoes, and excavators—no case drain required—making it a versatile choice for demanding drilling jobs.
Please contact us today at Triple M Services to discuss which anchor drive is the best option for you.
product features
Halo System
Optional on DIGGA drives
Hub
2.5" Hex
Max Torque
9,800 - 26,000 ft/lbs
Ideal Drives
DIGGA 12ADS - 30ADS / 12ALS - 25ALS
Belltec HTLS10K
product specifications
Anchor Drive Specs
| Model | MAX TORQUE | Speed | Pressure Relief Valve | Case Drain | Output Shaft |
|---|---|---|---|---|---|
| Belltec HTLS10K | 12,216 FT/LBS | SINGLE SPEED | N/A | NOT REQUIRED | 2.5" HEX |
| DIGGA 12ADS | 11,542 FT/LBS | SINGLE SPEED | included | NOT REQUIRED | 2.5" HEX |
| Digga 12ALS | 12,445 FT/LBS | low pressure, SINGLE SPEED | Included | NOT REQUIRED | 2.5" HEX |

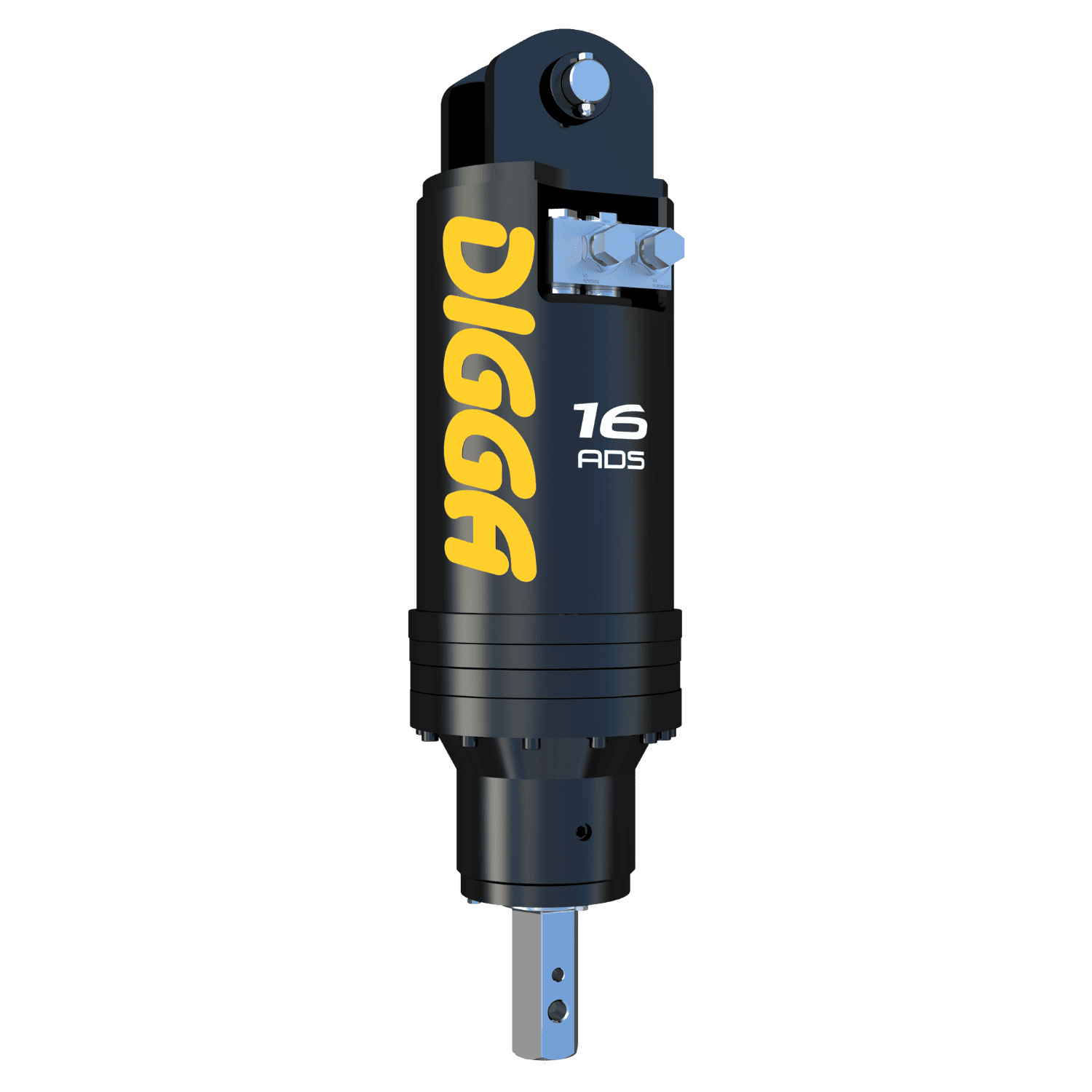

| Digga 16ADS | 16,111 FT/LBS | Single Speed | Included | Not Required | 3" Hex |

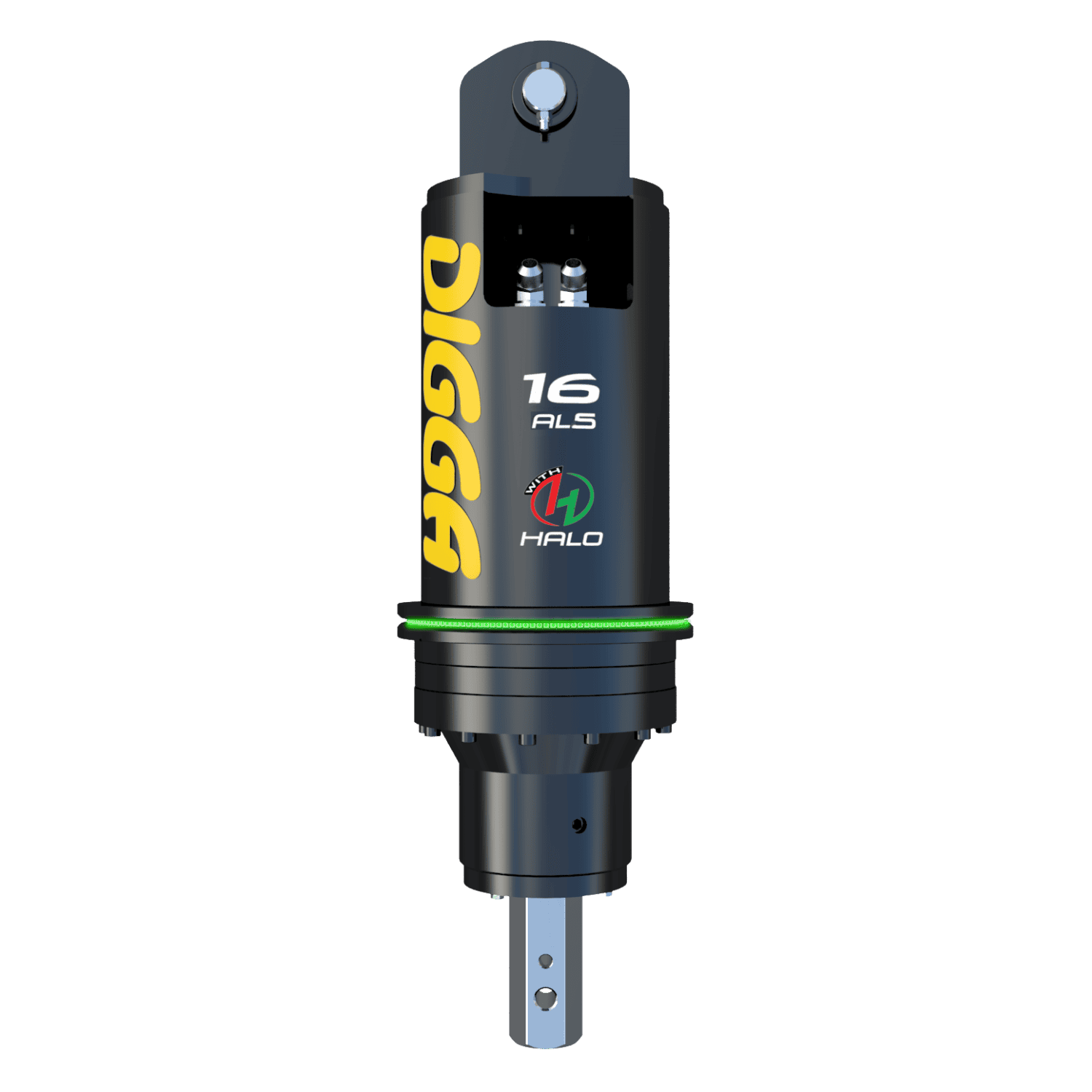

| Digga 16ALS | 17,334 FT/LBS | Low pressure, Single Speed | Included | Not Required | 3" Hex |
| Digga 20ADS | 20,514 FT/LBS | Single Speed | Included | Not Required | 100MM Square |

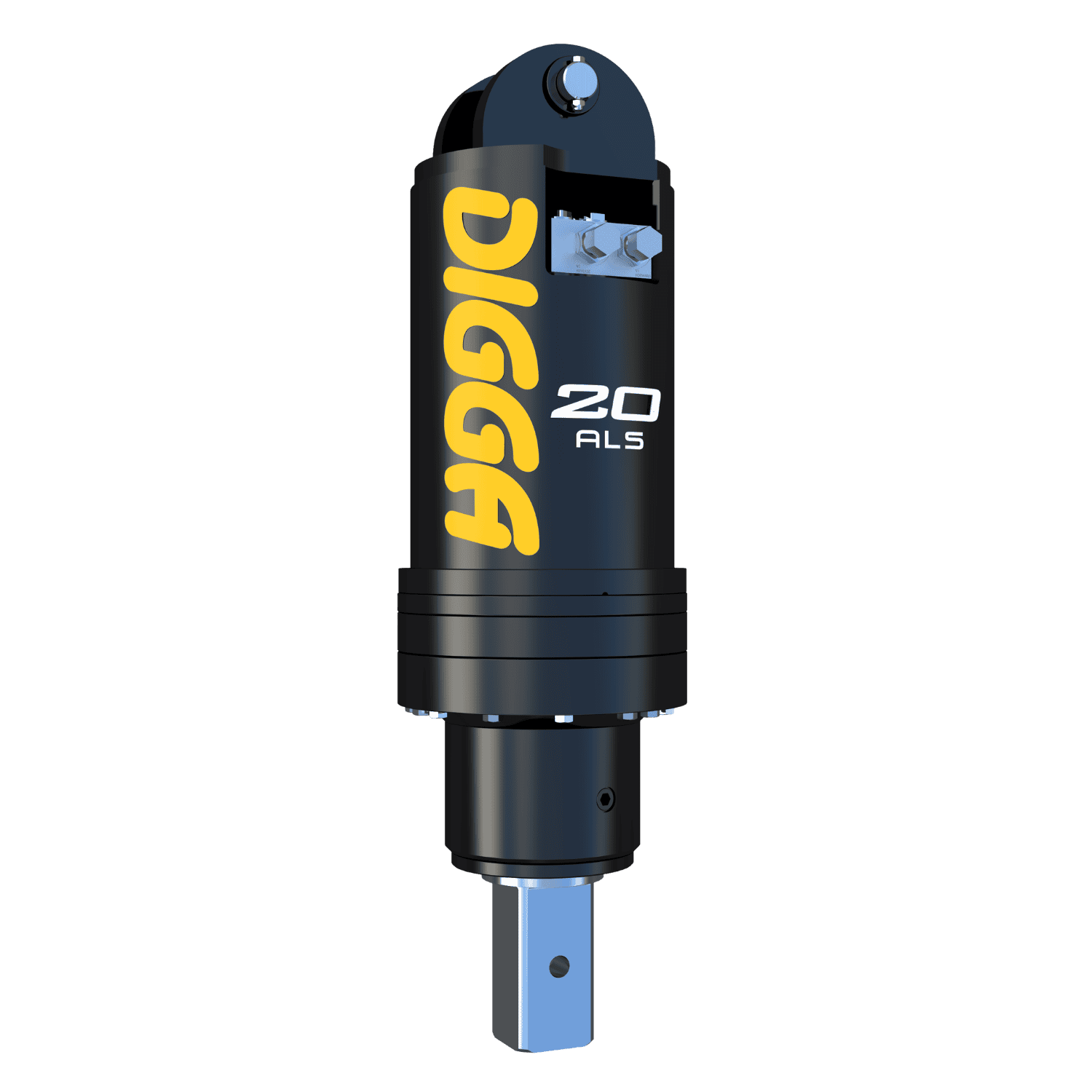

| Digga 20ALS | 21,012 FT/LBS | Low Pressure, Single Speed | Included | Not Required | 100MM Square |

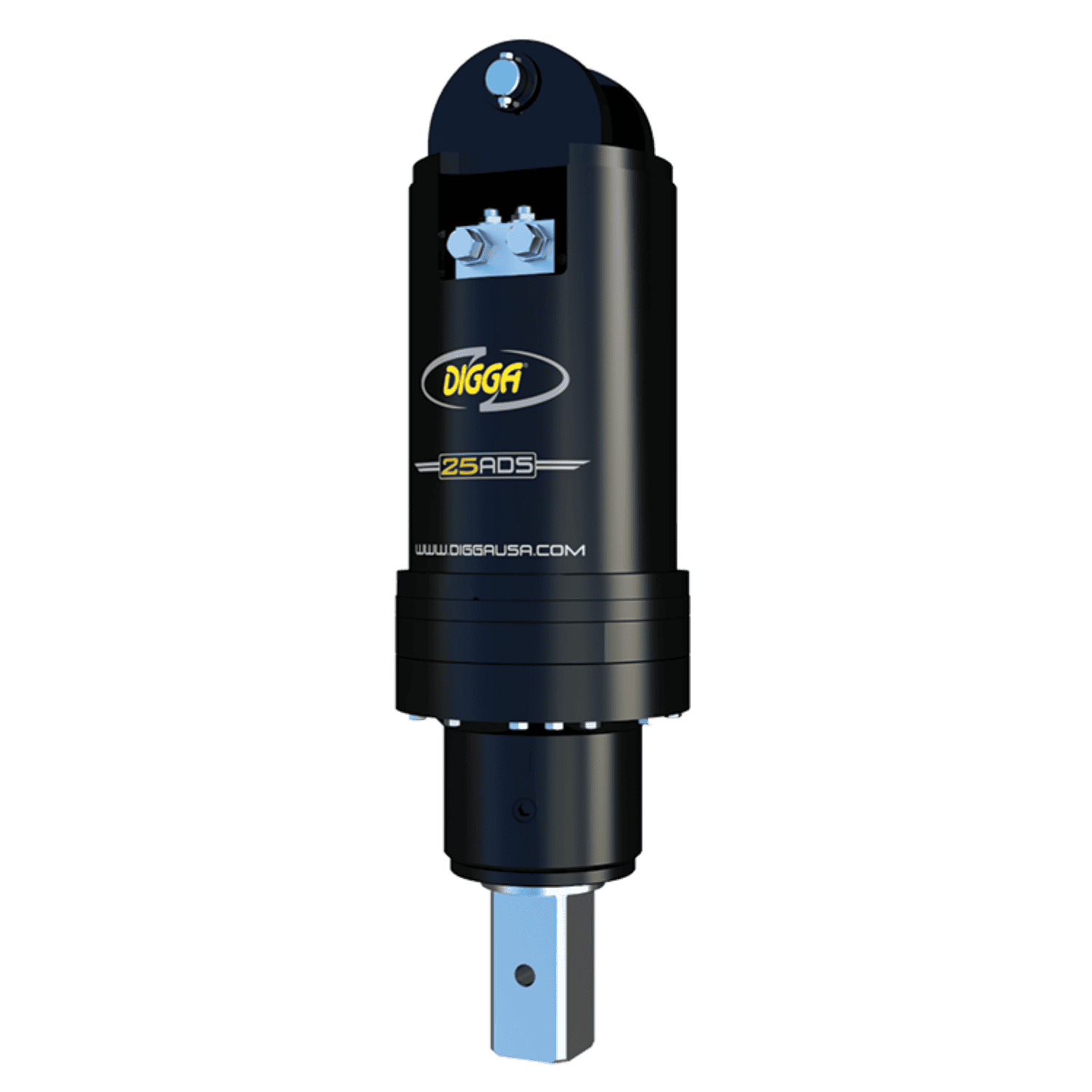

| Digga 25ADS | 24,514 FT/LBS | Single Speed | Included | Not Required | 100MM Square |
| Digga 25ALS | 26,375 FT/LBS | Low Pressure, Single Speed | Included | Not Required | 100MM Square |

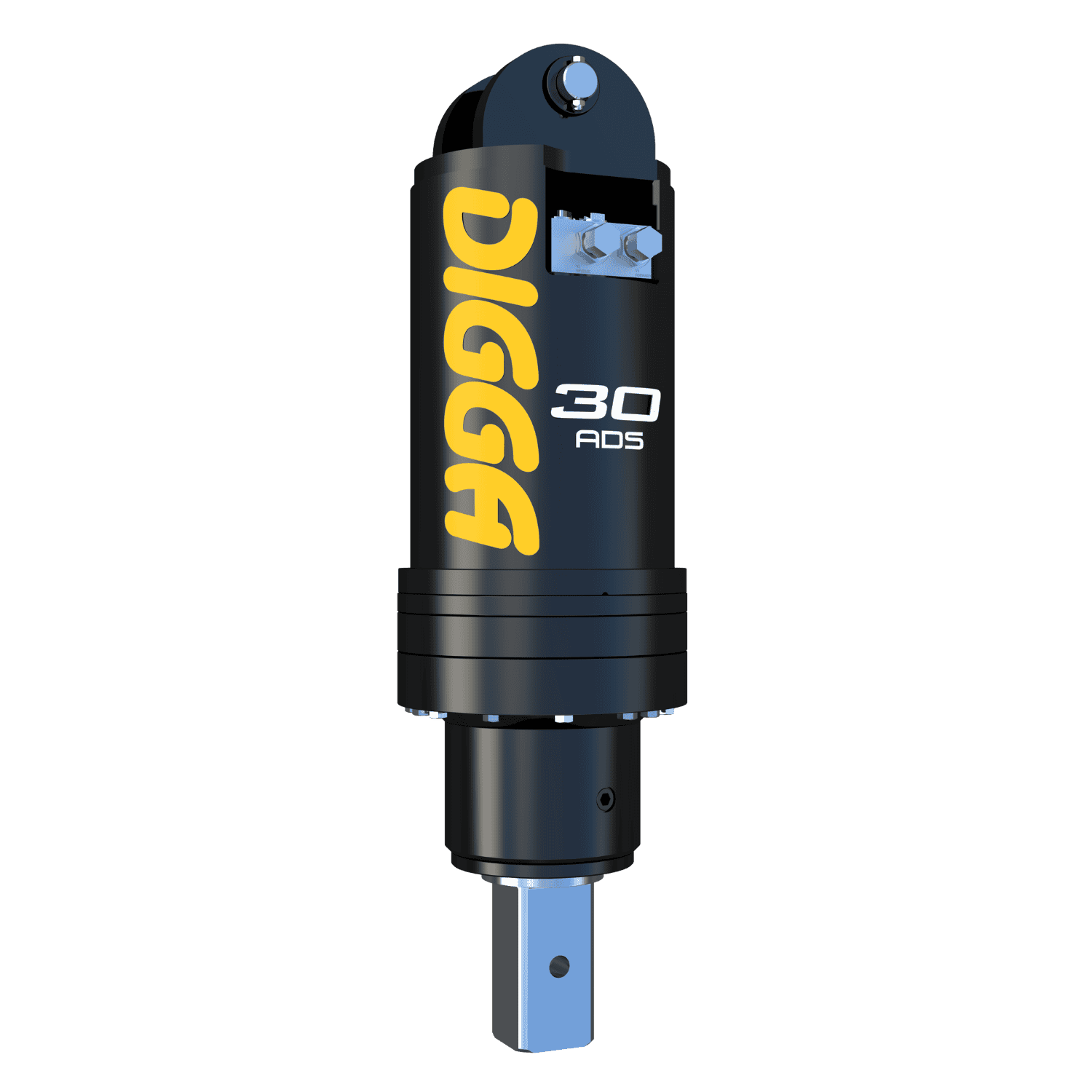

| Digga 30ADS | 30,771 FT/LBS | Single Speed | Included | Not Required | 100MM Square |
how the halo align system works
Watch a short video to see the Halo align system in action.
Still have some questions?
That’s why we are here. Call Triple M today!
