Full Size Excavator Anchor Drives
Digga designs and manufactures a full range of heavy-duty anchor drives specifically for screw piling and ground anchor installation, working closely with leading industry experts worldwide. These drives are built tough to handle demanding jobs, with compact, high-torque gearboxes and highly efficient hydraulic motors that deliver consistent, powerful performance. They operate within the host machine’s optimal horsepower range to reduce wear and tear, improve efficiency, and maximize returns.
Across their product range—from the ADS Drives (up to 30,800 ft-lbs) to the Supa Anchor Drives (up to 70,000 ft-lbs) to the Mega (up to 150,000 ft-lbs), Ultra (up to 230,000 ft-lbs), and Xtreme Drives (up to 360,000 ft-lbs) These drives include advanced features like a single or two-speed drive system, Energy Control Valve (ECV) to protect against pile kickback, and built-in Pressure Relief Valves for system safety. Their designs require minimal maintenance, with no complex hoses or filtration needed.
Warranties range from 1 to 3 years depending on the model and features, giving customers confidence in the durability and reliability of their investment.
Please contact us today at Triple M Services to discuss which anchor drive is the best for you.
product features
Halo System
Optional on ADS drives
Hub
3" Hex
100 / 130 / 200 mm Square
Max Torque
16,500 - 302,000 ft/lbs
Ideal Drives
DIGGA 20 - 30 ADS
Supa / Mega / Ultra / Xtreme
product specifications
Anchor Drive Specs
| Model | MAX TORQUE | Speed | Pressure Relief Valve | Energy Control Valve | Case Drain | Output Shaft |
|---|---|---|---|---|---|---|
| 20ADS | 20,514 FT/LBS | Single Speed | Included | N/A | Not Required | 100MM Square |

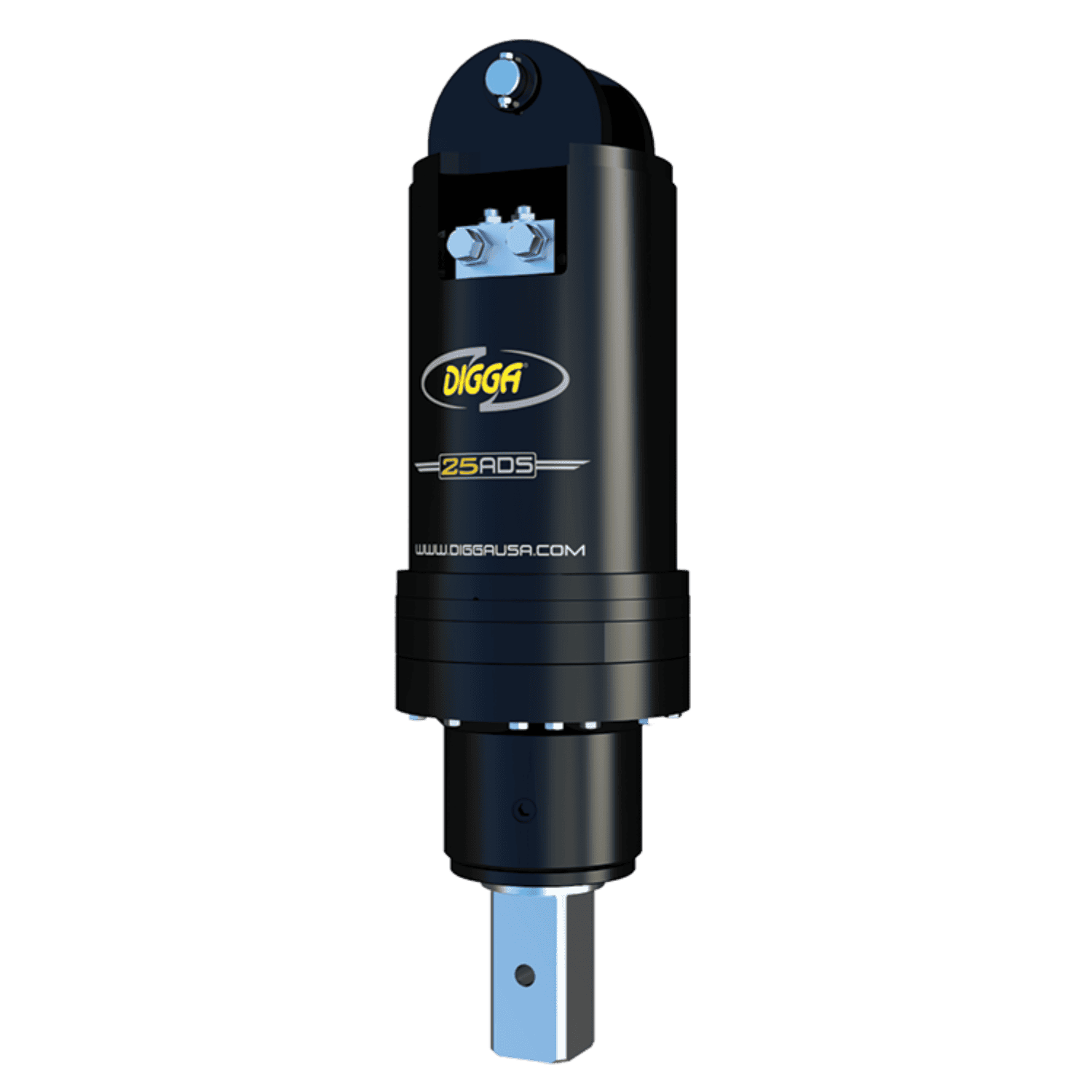

| 25ADS | 24,514 FT/LBS | Single Speed | Included | N/A | Not Required | 100MM Square |

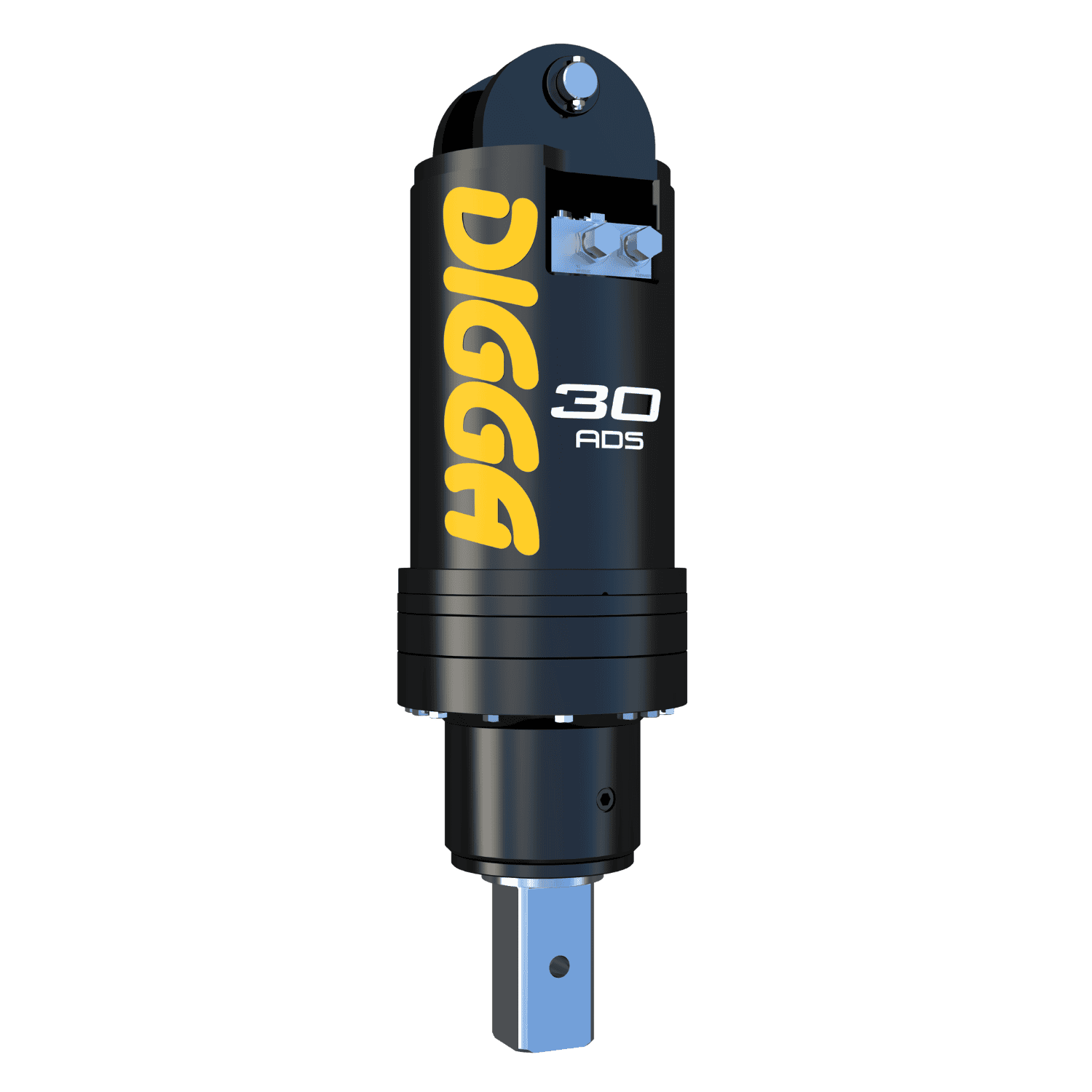

| 30ADS | 30,771 FT/LBS | Single Speed | Included | N/A | Not Required | 100MM Square |

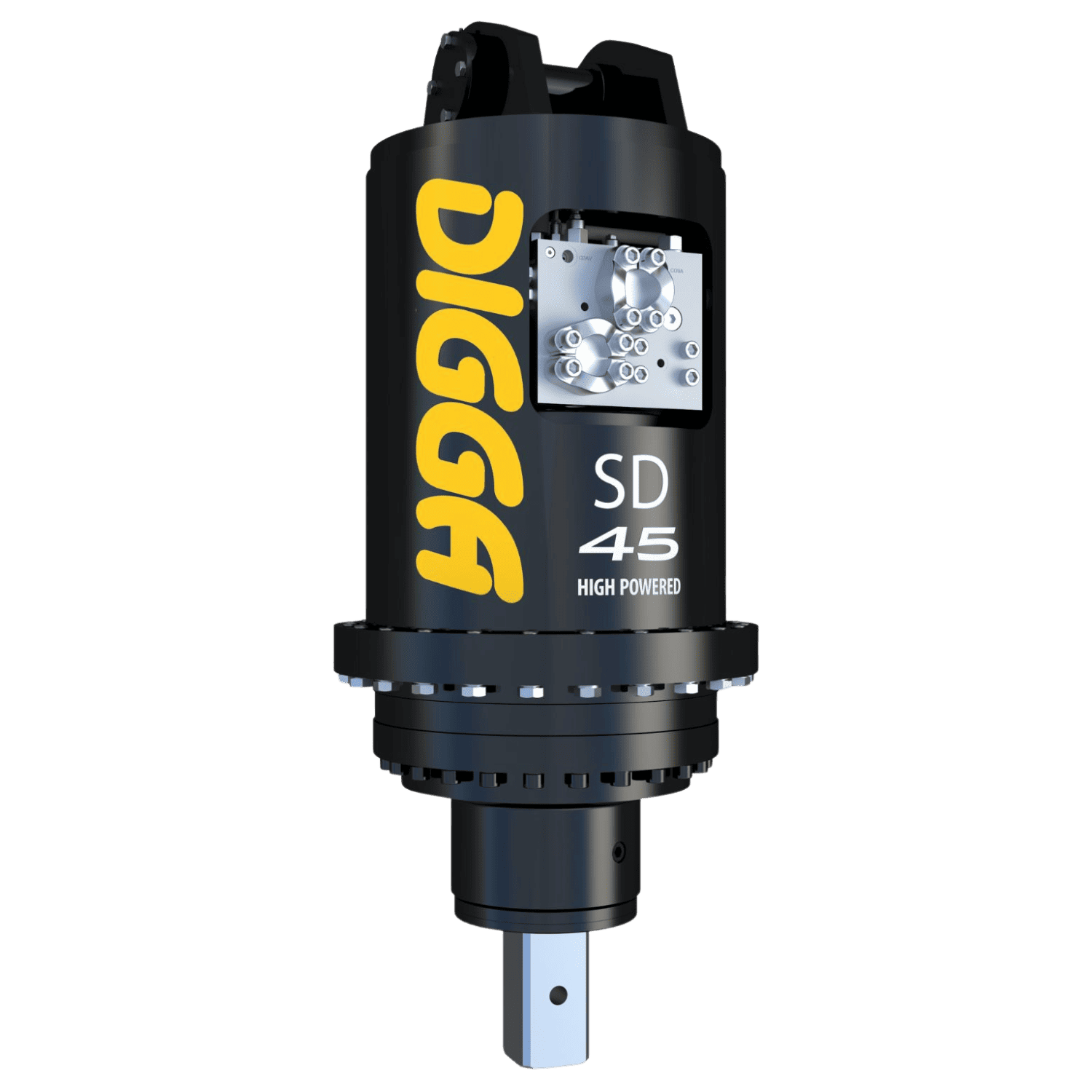

| SD45 | 32,900 FT/LBS | Two Speed | Included | Included | Required | 100MM Square |

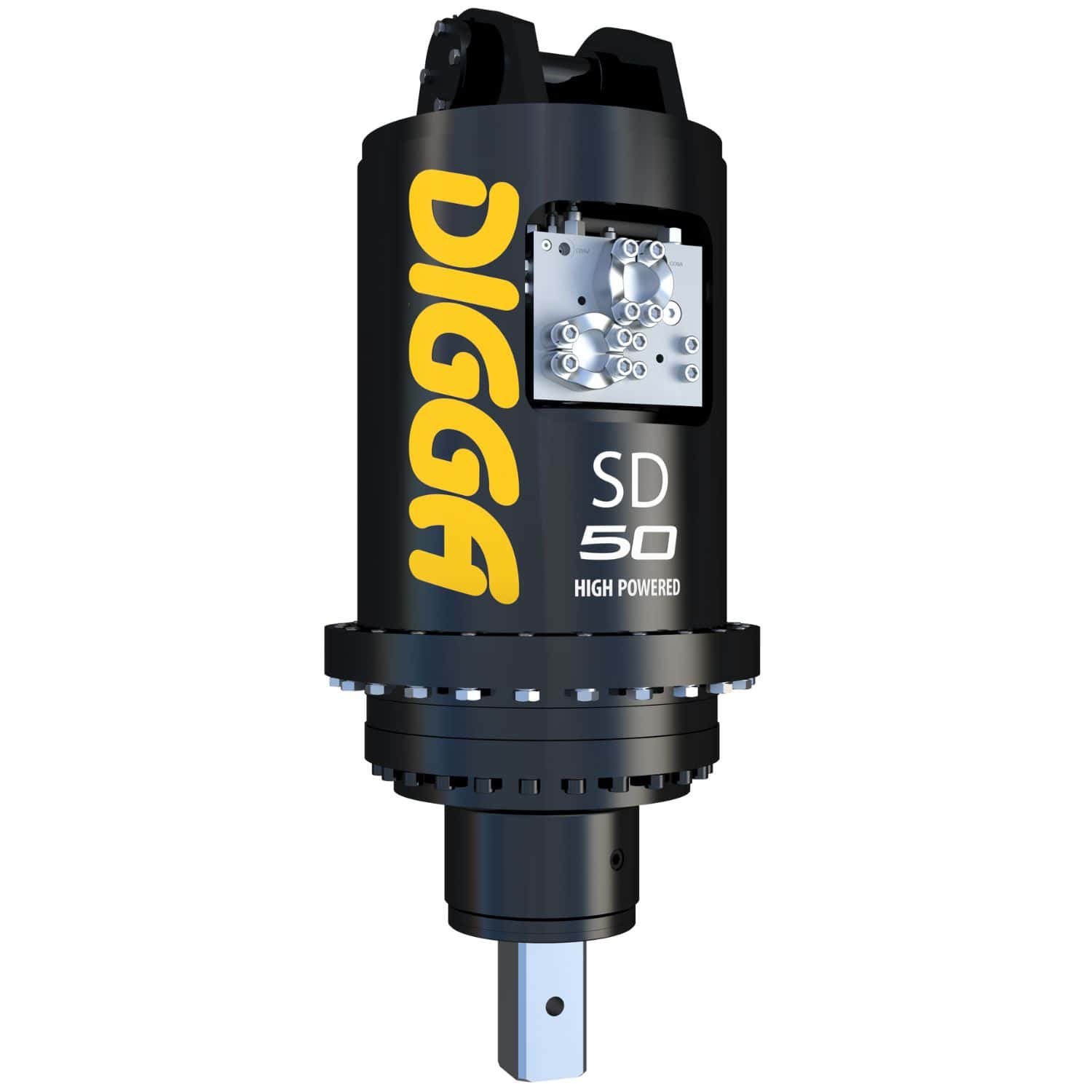

| SD50 | 38,500 FT/LBS | Two Speed | Included | Included | Required | 100MM Square |

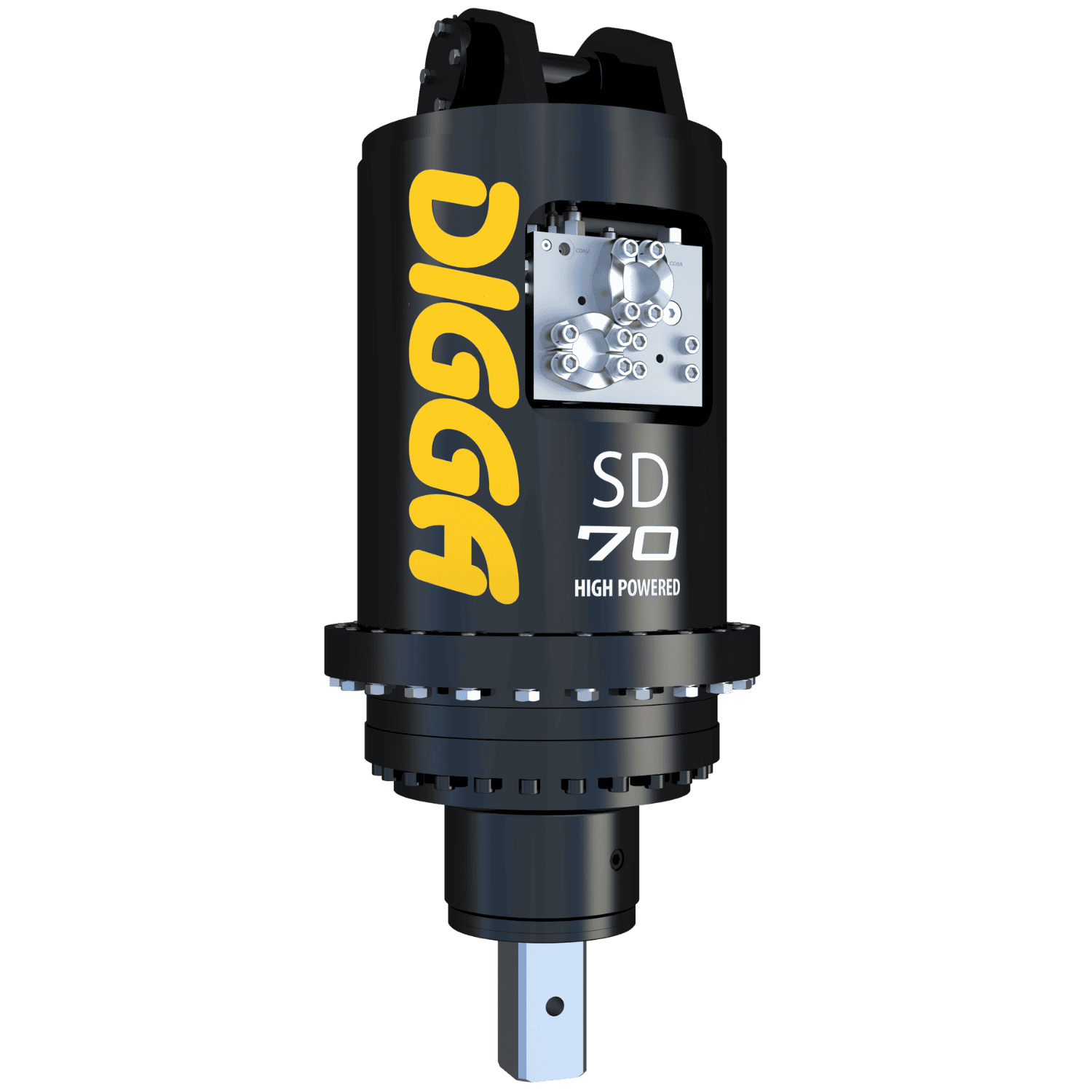

| SD70 | 50,400 FT/LBS | Two Speed | Included | Included | Required | 100MM Square |
| SD80 | 60,800 FT/LBS | Two Speed | Included | Included | Required | 100MM Square |
| SD95 | 67,600 FT/LBS | Two Speed | Included | Included | Required | 100MM Square |

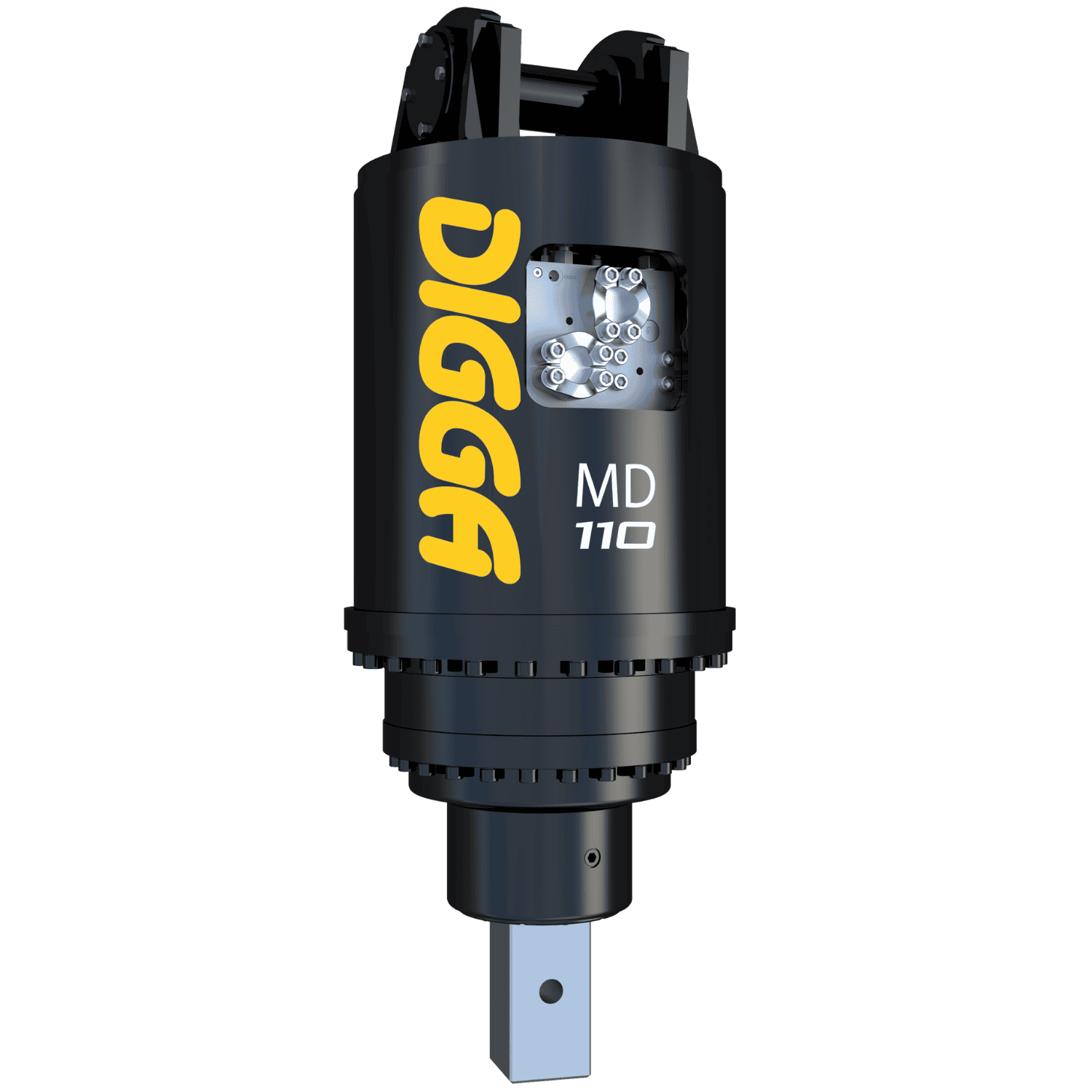

| MD110 | 84,800 FT/LBS | Two Speed | Included | Included | Required | 130MM Square |

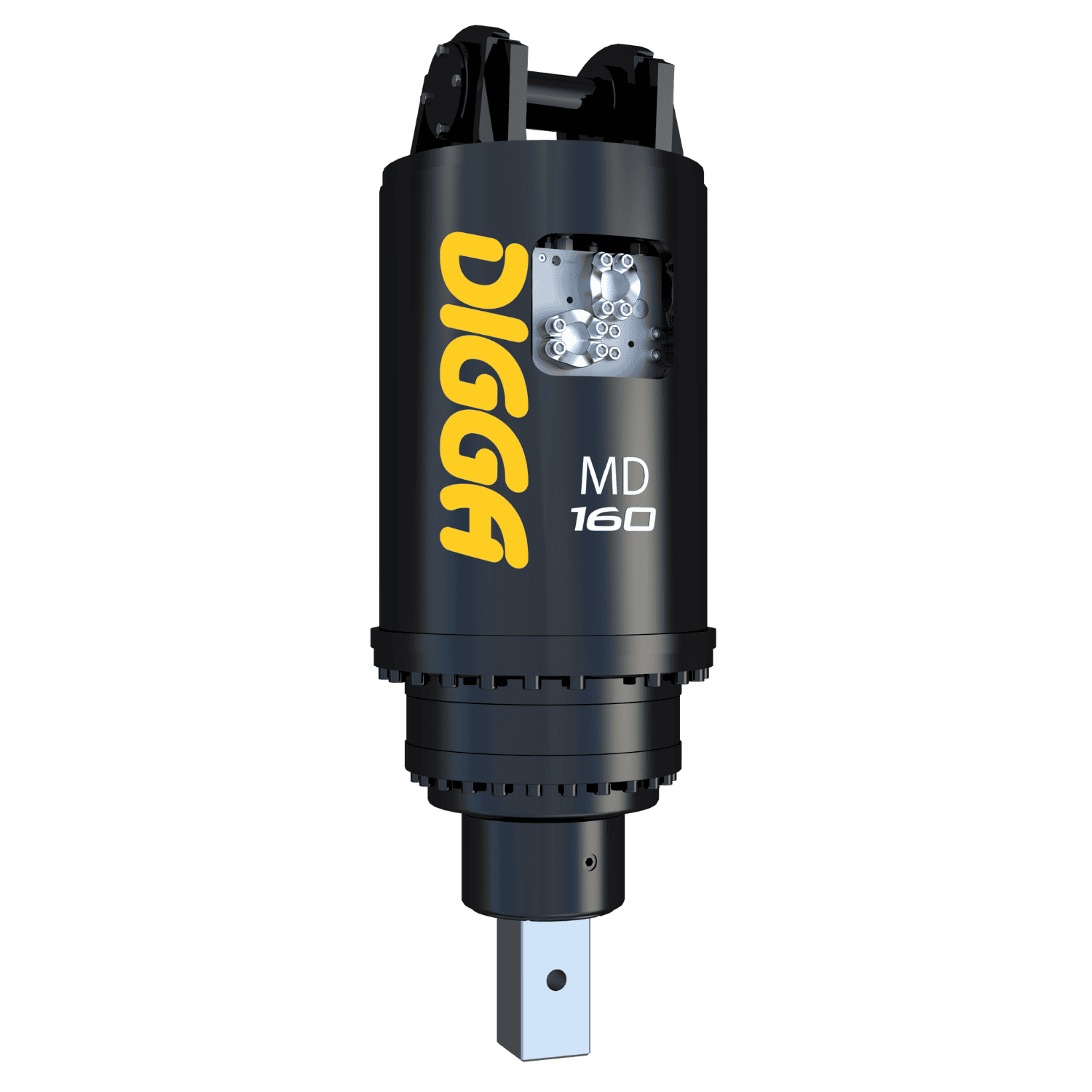

| MD160 | 125,600 FT/LBS | Two Speed | Included | Included | Required | 130MM Square |

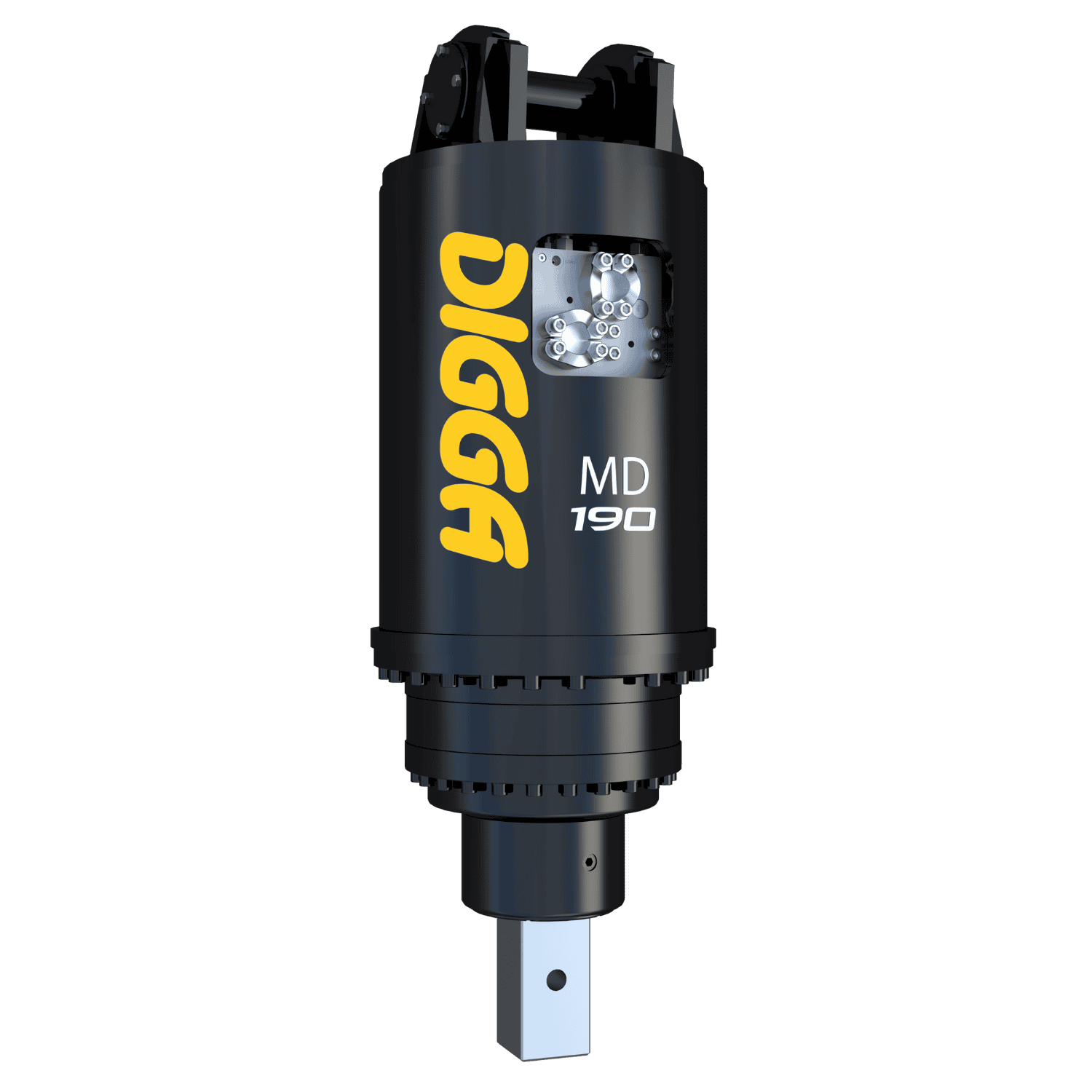

| MD190 | 147,300 FT/LBS | Two Speed | Included | Included | Required | 130MM Square |
| UD190 | 138,500 FT/LBS | Two Speed | Included | Included | Required | 150MM Square |
| UD220 | 154,000 FT/LBS | Two Speed | Included | Included | Required | 150MM Square |
| UD220 | 154,000 FT/LBS | Two Speed | Included | Included | Required | 150MM Square |
| UD250 | 180,000 FT/LBS | Two Speed | Included | Included | Required | 150MM Square |

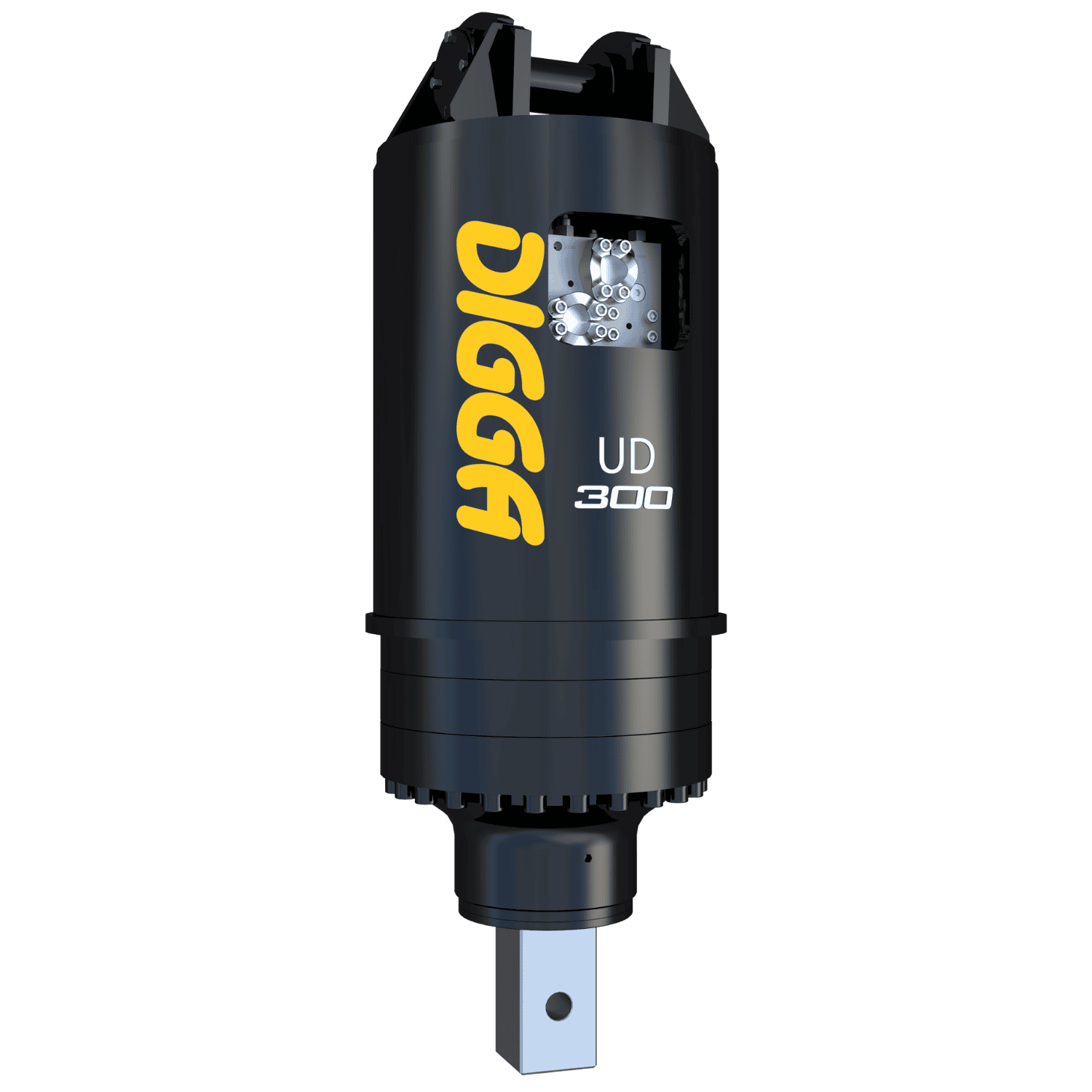

| UD300 | 226,500 FT/LBS | Two Speed | Included | Included | Required | 150MM Square |
| XD270 | 192,700 FT/LBS | Two Speed | Included | Included | Required | 200MM Square |

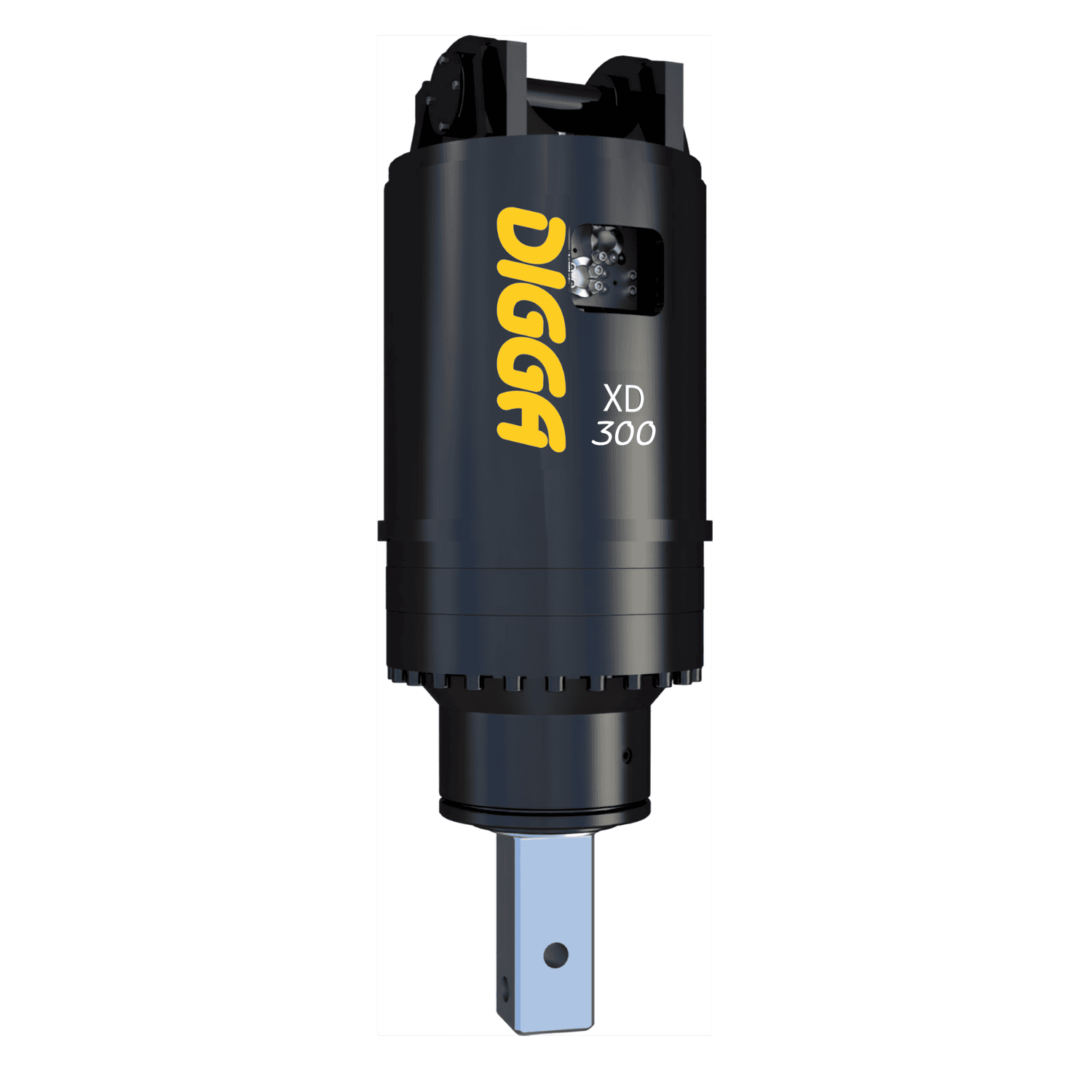

| XD300 | 226,000 FT/LBS | Two Speed | Included | Included | Required | 200MM Square |
| XD410 | 295,700 FT/LBS | Two Speed | Included | Included | Required | 200MM Square |

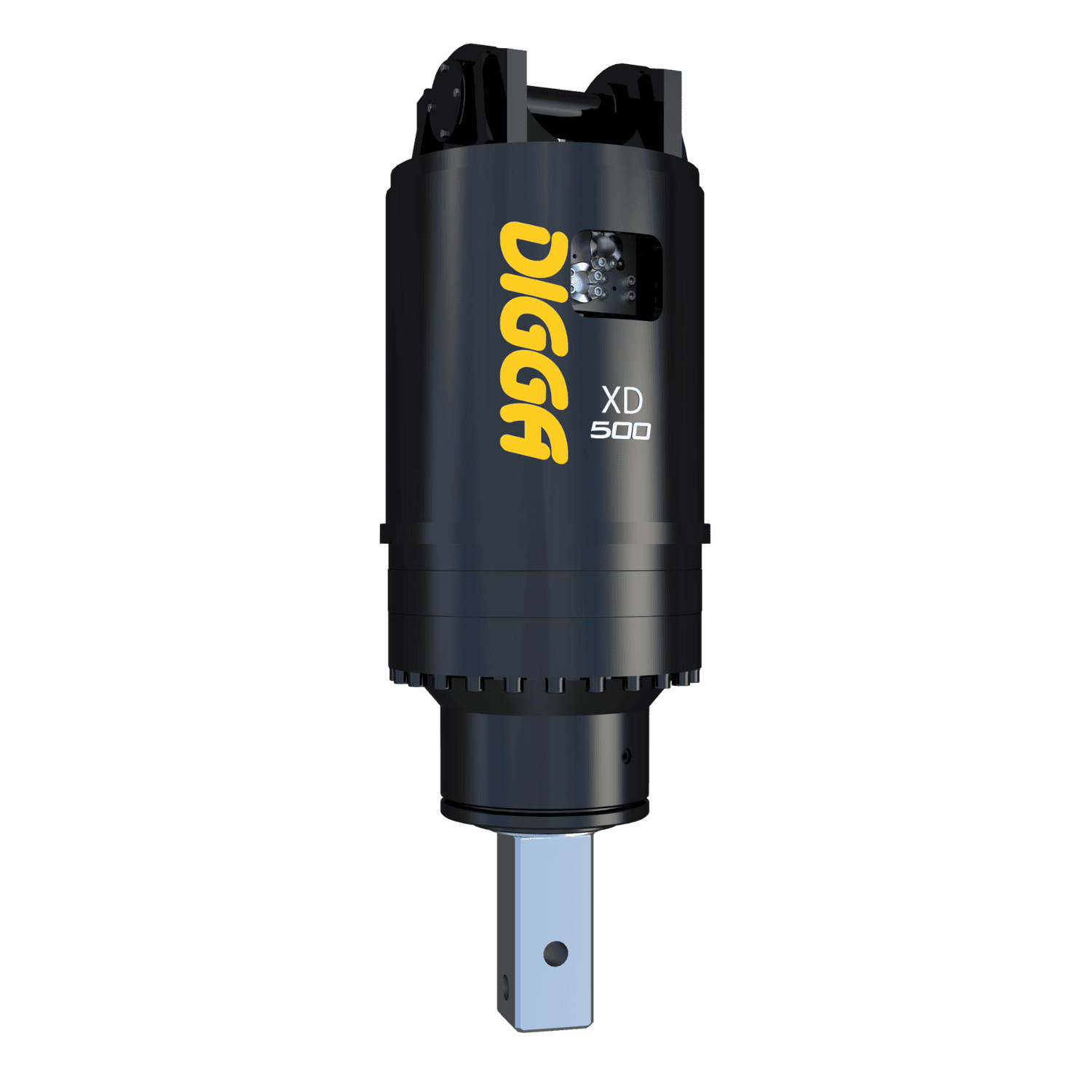

| XD500 | 356,400 FT/LBS | Two Speed | Included | Included | Required | 200MM Square |
how the halo system works
Watch a short video to see the Halo align system in action.
